Note

This tutorial is compatible with Gymnasium version 1.2.0.

Action Masking in the Taxi Environment

This tutorial demonstrates how to use action masking in the Taxi environment to improve reinforcement learning performance by preventing invalid actions.

The Taxi environment is a classic grid world problem where a taxi needs to pick up a passenger and drop them off at their destination. In this environment, not all actions are valid at every state - for example, you can’t drive through walls or pick up a passenger when you’re not at their location.

Action masking is a technique that helps reinforcement learning agents avoid selecting invalid actions by providing a binary mask that indicates which actions are valid in the current state. This can significantly improve learning efficiency and performance.

Understanding the Taxi Environment

The Taxi environment has 6 possible actions:

  • 0: Move south (down)

  • 1: Move north (up)

  • 2: Move east (right)

  • 3: Move west (left)

  • 4: Pickup passenger

  • 5: Drop off passenger

The environment provides an action_mask in the info dictionary returned by reset() and step(). This mask is a binary array where 1 indicates a valid action and 0 indicates an invalid action.

How Action Masking Works

Action masking works by constraining the agent’s action selection to only valid actions:

  1. During exploration: When selecting random actions, we only choose from the set of valid actions

  2. During exploitation: When selecting the best action based on Q-values, we only consider Q-values for valid actions

  3. During Q-learning updates: We compute the maximum future Q-value only over valid actions in the next state

Let’s implement this step by step:

import random
from pathlib import Path

import matplotlib.pyplot as plt
import numpy as np

import gymnasium as gym


# Base random seed for reproducibility
BASE_RANDOM_SEED = 58922320


def train_q_learning(
    env,
    use_action_mask: bool = True,
    episodes: int = 5000,
    seed: int = BASE_RANDOM_SEED,
    learning_rate: float = 0.1,
    discount_factor: float = 0.95,
    epsilon: float = 0.1,
) -> dict:
    """Train a Q-learning agent with or without action masking."""
    # Set random seeds for reproducibility
    np.random.seed(seed)
    random.seed(seed)

    # Initialize Q-table
    n_states = env.observation_space.n
    n_actions = env.action_space.n
    q_table = np.zeros((n_states, n_actions))

    # Track episode rewards for analysis
    episode_rewards = []

    for episode in range(episodes):
        # Reset environment
        state, info = env.reset(seed=seed + episode)
        total_reward = 0
        done = False
        truncated = False

        while not (done or truncated):
            # Get action mask if using it
            action_mask = info["action_mask"] if use_action_mask else None

            # Epsilon-greedy action selection with masking
            if np.random.random() < epsilon:
                # Random action selection
                if use_action_mask:
                    # Only select from valid actions
                    valid_actions = np.nonzero(action_mask == 1)[0]
                    action = np.random.choice(valid_actions)
                else:
                    # Select from all actions
                    action = np.random.randint(0, n_actions)
            else:
                # Greedy action selection
                if use_action_mask:
                    # Only consider valid actions for exploitation
                    valid_actions = np.nonzero(action_mask == 1)[0]
                    if len(valid_actions) > 0:
                        action = valid_actions[np.argmax(q_table[state, valid_actions])]
                    else:
                        action = np.random.randint(0, n_actions)
                else:
                    # Consider all actions
                    action = np.argmax(q_table[state])

            # Take action and observe result
            next_state, reward, done, truncated, info = env.step(action)
            total_reward += reward

            # Q-learning update
            if not (done or truncated):
                if use_action_mask:
                    # Only consider valid next actions for bootstrapping
                    next_mask = info["action_mask"]
                    valid_next_actions = np.nonzero(next_mask == 1)[0]
                    if len(valid_next_actions) > 0:
                        next_max = np.max(q_table[next_state, valid_next_actions])
                    else:
                        next_max = 0
                else:
                    # Consider all next actions
                    next_max = np.max(q_table[next_state])

                # Update Q-value
                q_table[state, action] = q_table[state, action] + learning_rate * (
                    reward + discount_factor * next_max - q_table[state, action]
                )

            state = next_state

        episode_rewards.append(total_reward)

    return {
        "episode_rewards": episode_rewards,
        "mean_reward": np.mean(episode_rewards),
        "std_reward": np.std(episode_rewards),
    }

Running the Experiment

Now we’ll run experiments to compare the performance of Q-learning agents with and without action masking. We’ll use multiple random seeds to ensure robust statistical comparison.

The experiment setup: - 12 independent runs with different random seeds - 5000 episodes per run - Standard Q-learning hyperparameters (α=0.1, γ=0.95, ε=0.1)

# Experiment parameters
n_runs = 12
episodes = 5000
learning_rate = 0.1
discount_factor = 0.95
epsilon = 0.1

# Generate different seeds for each run
seeds = [BASE_RANDOM_SEED + i for i in range(n_runs)]

# Store results for comparison
masked_results_list = []
unmasked_results_list = []

# Run experiments with different seeds
for i, seed in enumerate(seeds):
    print(f"Run {i + 1}/{n_runs} with seed {seed}")

    # Train agent WITH action masking
    env_masked = gym.make("Taxi-v3")
    masked_results = train_q_learning(
        env_masked,
        use_action_mask=True,
        seed=seed,
        learning_rate=learning_rate,
        discount_factor=discount_factor,
        epsilon=epsilon,
        episodes=episodes,
    )
    env_masked.close()
    masked_results_list.append(masked_results)

    # Train agent WITHOUT action masking
    env_unmasked = gym.make("Taxi-v3")
    unmasked_results = train_q_learning(
        env_unmasked,
        use_action_mask=False,
        seed=seed,
        learning_rate=learning_rate,
        discount_factor=discount_factor,
        epsilon=epsilon,
        episodes=episodes,
    )
    env_unmasked.close()
    unmasked_results_list.append(unmasked_results)

Visualizing Results

After running all experiments, we calculate statistics and create visualizations to compare the performance of both approaches.

# Calculate statistics across runs
masked_mean_rewards = [r["mean_reward"] for r in masked_results_list]
unmasked_mean_rewards = [r["mean_reward"] for r in unmasked_results_list]

masked_overall_mean = np.mean(masked_mean_rewards)
masked_overall_std = np.std(masked_mean_rewards)
unmasked_overall_mean = np.mean(unmasked_mean_rewards)
unmasked_overall_std = np.std(unmasked_mean_rewards)

# Create visualization
plt.figure(figsize=(12, 8), dpi=100)

# Plot individual runs with low alpha
for i, (masked_results, unmasked_results) in enumerate(
    zip(masked_results_list, unmasked_results_list)
):
    plt.plot(
        masked_results["episode_rewards"],
        label="With Action Masking" if i == 0 else None,
        color="blue",
        alpha=0.1,
    )
    plt.plot(
        unmasked_results["episode_rewards"],
        label="Without Action Masking" if i == 0 else None,
        color="red",
        alpha=0.1,
    )

# Calculate and plot mean curves across all runs
masked_mean_curve = np.mean([r["episode_rewards"] for r in masked_results_list], axis=0)
unmasked_mean_curve = np.mean(
    [r["episode_rewards"] for r in unmasked_results_list], axis=0
)

plt.plot(
    masked_mean_curve, label="With Action Masking (Mean)", color="blue", linewidth=2
)
plt.plot(
    unmasked_mean_curve,
    label="Without Action Masking (Mean)",
    color="red",
    linewidth=2,
)

plt.xlabel("Episode")
plt.ylabel("Total Reward")
plt.title("Training Performance: Q-Learning with vs without Action Masking")
plt.legend()
plt.grid(True, alpha=0.3)

# Save the figure
savefig_folder = Path("_static/img/tutorials/")
savefig_folder.mkdir(parents=True, exist_ok=True)
plt.savefig(
    savefig_folder / "taxi_v3_action_masking_comparison.png",
    bbox_inches="tight",
    dpi=150,
)
plt.show()

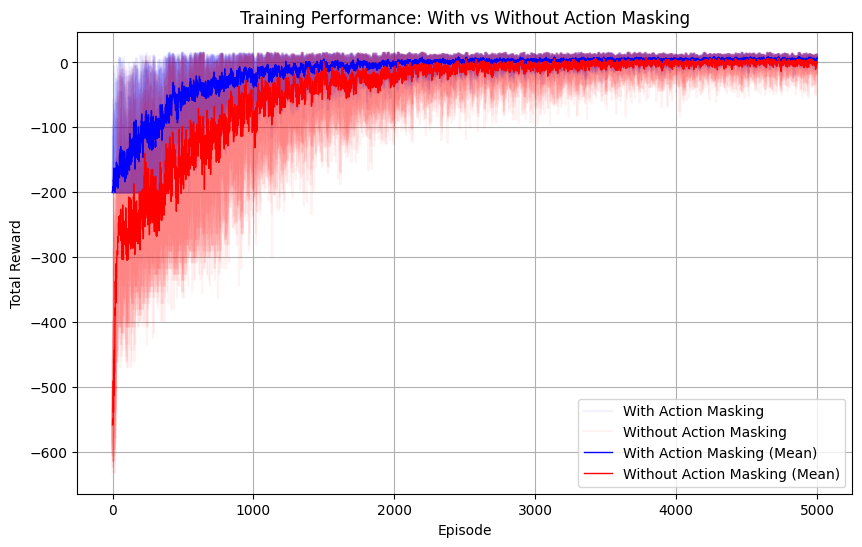

../../../_images/taxi_v3_action_masking_comparison.png

Results Analysis

The comparison demonstrates several important benefits of using action masking:

Key Benefits of Action Masking:

1. Faster Convergence: Agents with action masking typically learn faster because they don’t waste time exploring invalid actions.

  1. Better Performance: By focusing only on valid actions, the agent can achieve higher rewards more consistently.

  2. More Stable Learning: Action masking reduces the variance in learning by eliminating the randomness associated with invalid action selection.

  3. Practical Applicability: In real-world scenarios, action masking prevents agents from taking actions that could be dangerous or impossible.

Reminder of Key Implementation Details

  • Action Selection: We filter available actions using np.nonzero(action_mask == 1)[0] to get only valid actions

  • Q-Value Updates: When computing the maximum future Q-value, we only consider valid actions in the next state

  • Exploration: Random action selection is constrained to the set of valid actions

This approach ensures that the agent never selects invalid actions while still maintaining the exploration-exploitation balance necessary for effective learning.
